    This development Board board is compatible with the AT90S8535 and with the Atmega8535.

    Features:
    • In System programming system.
    • One RS232 port.
    • Two lines with interruption.
    • 19 digital inpout/output lines
    • 8 lines with 10 bits Analogic to digital converters.

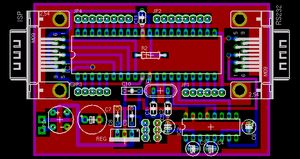

    Board:

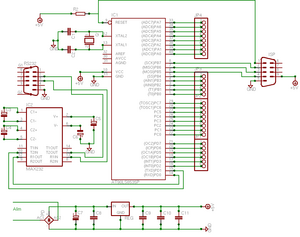

    Schematic:

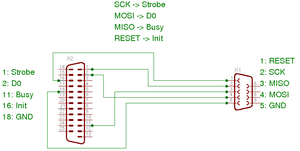

    Cable for In System Programming:
